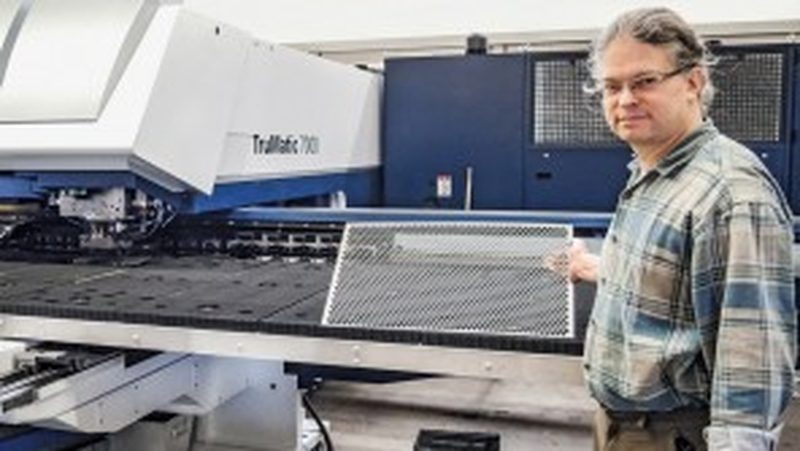

For Ralph Hemberger, head of production scheduling at Alfred Rexroth GmbH & Co. KG in Veichtshöchheim, Germany, integrated flattening by TRUMPF eases work considerably.

1 Star2 Stars3 Stars4 Stars5 Stars (Please let us have your feedback.)
Loading...Loading...

Flat and level sheet metal, without retouching

Integrated flattening, implemented by TRUMPF, ensures that unblemished sheet metal exits the punch or combined punch laser machine.

Punching a large number of holes in thin sheet metal, without distorting the panel, and that in a single pass – that is now possible thanks to the new integrated flattening concept by TRUMPF. In the standard punching process, the punch draws material into the hole as it penetrates the sheet. That makes for compressive stress then, and tensile stress when the punch is withdrawn. Especially when working low-gauge sheet metal with many holes, the material can become deformed. The result is a wavy sheet which will have to be flattened in a separate machine before processing can continue.

With the integrated flattening, this extra step is no longer necessary. The function – available both on the thoroughly productive TruPunch 5000 and on the high-end TruMatic 7000 punch laser machine – induces opposing stresses. Thus it ensures undistorted sheet metal panels and in this way shortens the entire working process.

High degree of flatness in one step

For Ralph Hemberger, head of production scheduling at Alfred Rexroth GmbH & Co. KG in Veichtshöchheim, Germany, this new function represents a considerable labor saving. “The integrated flattening feature incorporated into the TruMatic 7000 reduces logistic expenditures because the components no longer have to be transferred to one of our other shops for flattening.”

The company produces speaker covers. Since these parts are visible, the optical requirements are high. Here keeping the sheet flat, combined with the great ratio of punched area in these perforated grids, represented a challenge. Integrated flattening proved to be a proper solution. “The new process lets us carry out the entire operation, including punching and embossing, all in one step while achieving a high degree of flatness.” Hemberger confirms.

Die + stripper = flat sheet

The central components in integrated flattening are the punching tools made by TRUMPF. A convex die and a stripper with a recess and special coating make sure that the sheet metal isn’t deformed. The convex die presses the sheet metal, from underneath, against the stripper; the sheet metal is over-bent at this point.

The concave stripper counteracts by pressing the sheet metal, raised by the convex die, back downward at the edge of the die. The overbending of the materials creates counter-stresses which offset the compressive and tensile stresses caused by the punching process. In this way the stresses are compensated and the sheet metal is flat when it leaves the machine.



Any questions?

Contact us: MastersofSheetMetal@trumpf.com

This article was first published in spring 2013.





Leave a comment

*

Required fields: Name, Mail & Comment (Mail will not be published).

When using standard punching processes, thin material can be misshapen when many perforations are punched. Integrated leveling ensures flat and level sheets, produced on just a single machine.


Specially designed tools are used for integrated flattening. The die is convex and the stripper features a recess and a special coating.


The high-productivity punching machine TruPunch 5000 built by TRUMPF offers maximum shaping capacities and the best of quality in the finished parts. The new, integrated flattening function, is now available.


The high-end punch and laser machine TruMatic 7000 by TRUMPF is as productive as it is versatile. With its integrated flattening feature, it makes up flat, perforated panels in a single cycle.
